    Accuracy Vision Measurement Machine / Digital Gauge Push - Pull Force Meter

    Ask Lasest Price
    Brand Name : UNIMETRO
    Model Number : DS2
    Certification : CE
    Price : Discussible
    • Product Details
    • Company Profile

    Accuracy Vision Measurement Machine / Digital Gauge Push - Pull Force Meter


    Digital push-pull force tester meter


    High quality factory push-pull force meter Digital push-pull force tester meter Digital gauge

    Product Description

    Digital push-pull force gauge
    It can be used for push-pull load test, plug-in force test and damage test of various products. The digital display has high resolution and is easy to use. It can connect the computer synchronously to display the test force curve and the test process record. It can be traced back to a new generation of high-efficiency and high-precision load push-pull test instrument.

    The push-pull force gauge perform their maximum ability in all kind of force measurement purpose.

    Extension and Compression Force Measurement:Simple Measurement of Strength of Spring and Rubber
    Touch Force Measurement:Checking operating force of key switches on telephone,electric calculator and remote controller
    Insertion/Withdraw Force Measurement:Both of insertion and withdraw force of connectors can be measured at a time.
    Fracture Load Test:Detection of maximum load on grass,carbons,ceramics,plastics and new material.
    Bending Load Test:Detection of maximum load on metal plate, rod and wood materials.
    Adhesion Force Measurement:Detection of adhesive force when adhesive tapes or materials on PCB is peeled off.
    Elasticity Measurement:Rubbers,new materials and other elastic materials.
    Hardness and Viscosity Test:Checking hardness of drug tablets and fruits and viscosity of lipsticks and other paste materials.
    Pop Test:Measurement of force for opening can's pull-tub.
    Tension Strength Test:Checking strength of electric terminal's end when tensed.
    Tensibility Test : Checking tensibility of electric wire and copper wire.
    Measurement of Contacting Point:Detection of operating force of mechanical switch and detection of changing condition of switch contact.

    DS2 Series

    Charcteristics

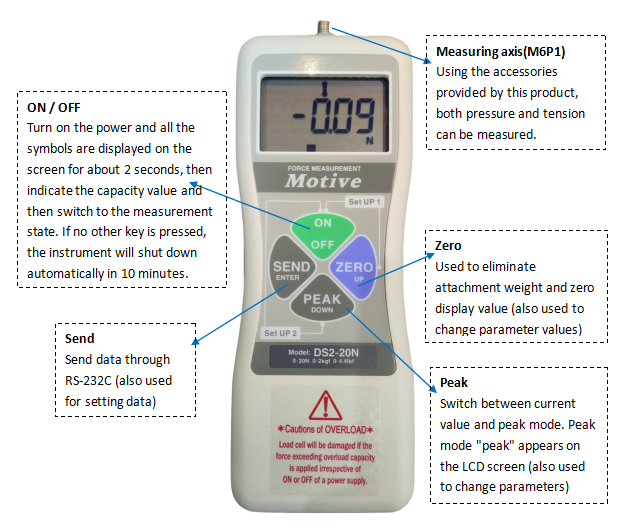

    ● Stretching or compressing the instrument measure axis, the digital display shows the measured force value.
    ● All models of instrument can get maximum force value in the measuring process.
    ● Overload or low battery,display screen will blink to alarm.
    ● Display turn over just need one bottom, easy to operation.
    ● More durable and easier to operation.

    Technical parameter

    ■ Measuring unit:N.Kgf (gf) or lbf (ozf) selectable
    ■ Display:4 digits LCD
    ■ Measurable value:Peak or current value
    ■ Sampling rate:1000 times /sec
    ■ Overload capacity:About 200% F.S.(100% Alarm LED Flash)
    ■ Accuracy:±0.2%F.S.,±1 digit
    ■ Operating temperature:0 to + 40℃
    ■ Power: Internal four AA Ni / MH batteries or external AC adapter
    ■ Output:RS-232c,analog voltage + / -1V F.S.
    ■ Weight:About 420g

    Specification
    Model
    Capacity
    Indication
    Resolution
    DS2-2N
    2N (200 gf)
    2.000 N (200.0 gf)
    0.001N ( 0.1gf )
    DS2-5N
    5N (500 gf)
    5.000 N (500.0 gf)
    0.001N ( 0.1gf )
    DS2-10N
    10N (1 kgf)
    10.000 N (1.000 kgf)
    0.01N ( 0.001 kgf )
    DS2-20N
    20N (2 kgf)
    20.000 N (2.000 kgf)
    0.01N ( 0.001 kgf )
    DS2-50N
    50N (5 kgf)
    50.00 N (5.000 kgf)
    0.01N ( 0.001 kgf )
    DS2-100N
    100N (10 kgf)
    100.0 N (10.00 Kgf)
    0.1N ( 0.01 kgf )
    DS2-200N
    200N (20 kgf)
    200.0 N (20.00 Kgf)
    0.1N ( 0.01 kgf )
    DS2-500N
    500N (50 kgf)
    500.0 N (50.00 Kgf)
    0.1N ( 0.01 kgf )
    DS2-1000N
    1000N (100 kgf)
    1000 N (100.0 Kgf)
    1N ( 0.1 kgf )

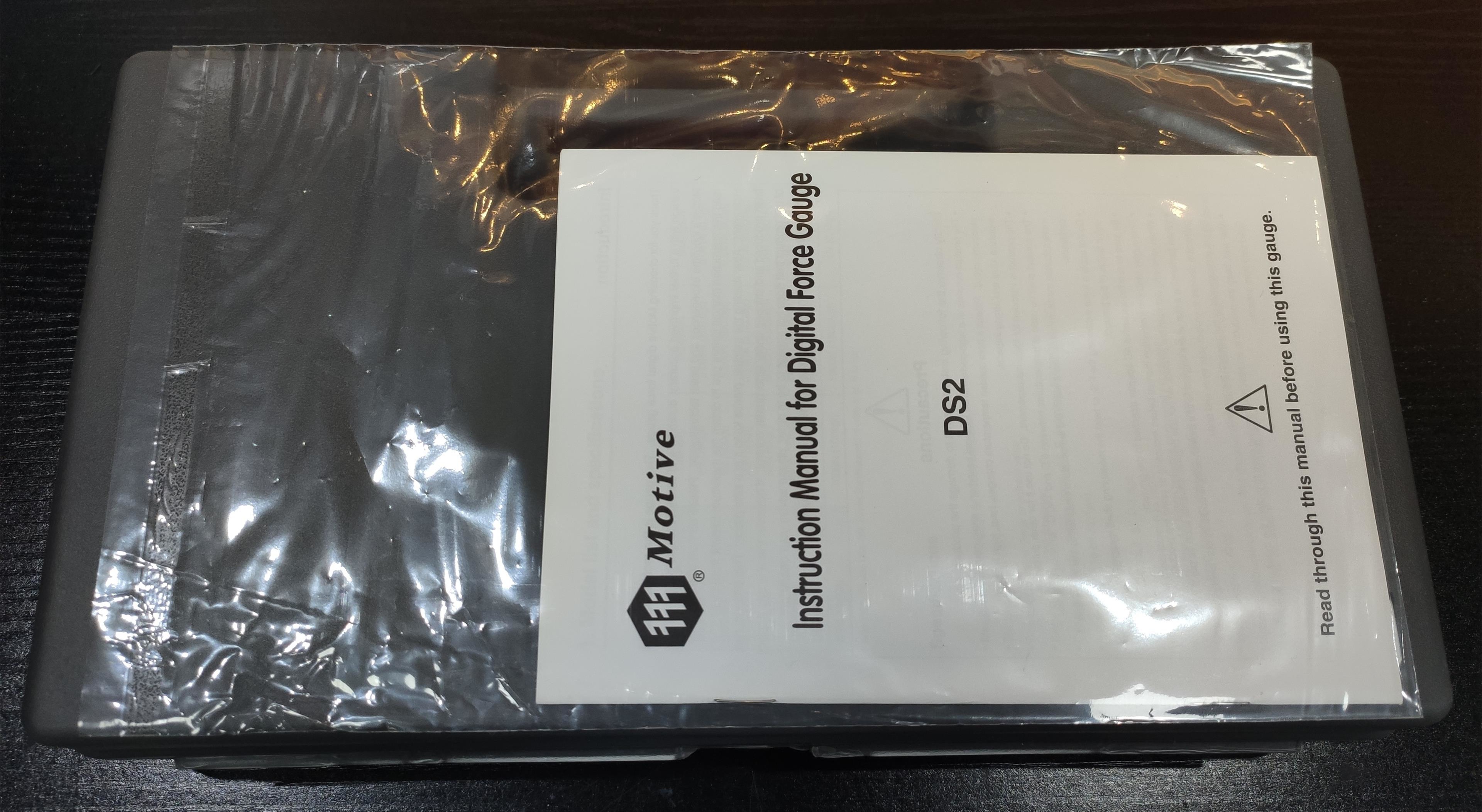

    Packing
