    Evaluate Waviness Contour Measuring Machine With Wide Range Non - Guide Roughness Sensor


    Surface Roughness Tester Contour Measuring System Roughness And Contour Measuring machine


    Evaluate roughness, waviness, profile,measuring machine Roughness tester with Wide Range Non-guide Roughness Sensor


    Product Description

    Roughness profile measurement analysis basis

    The measurable elements of all surfaces include size, shape, roughness and waviness. Many high-profile components need to analyze all of the above elements.
    ◆ Dimensions: Surface functional shapes defined by the linear relationship between radius, angle, distance, and features.
    ◆ Shape: deviation from the target shape of the surface (plane, sphere, cone, etc.), usually caused by machine error
    ◆ Roughness: caused by factors such as cutting tools or machining processes
    ◆ Waviness: Non-ideal machine effect caused by vibration, insufficient rigidity or other unstable factors in the process


    SR2000 Series

    Features: The best balance of performance and cost, with the best price/performance ratio.
    ★ Standard leadless wide range inductive sensor
    ★ Can evaluate roughness, waviness, profile, and many other parameters

    Measuring Case

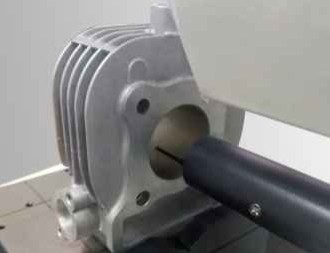

    Gearbox Air compressor upper shaft


    Motorcycle engine parts Car accessories


    Recommended Size

    Specification number
    SR2023G-tbo
    Measuring range
    X-axis
    120mm
    Z-axis
    420mm
    Z1-axis
    ±620µm/262144:1
    Roughness parameter
    Linear precision¹
    ±3%
    Repeatability
    1δ≤1nm
    Cutoff wavelength
    0.025,0.08,0.25,0.8,2.5,8mm
    Rating length
    λcX2,3,4,5,6,7
    Residual noise
    ≤0.12µm
    Drive speed
    X-axis
    0.05~20mm/s
    Z-axis
    0.2~20mm/s
    Measurement function
    Roughness
    Roughness function:Ra,Rp,Rv,Rz(jis),R3z,RzDIN,Rzj,Rmaz,Rc,Rt,Rq,Rsk,Rku,Rsm,Rsm,Rs,RΔq,Rk,Rpk,Rvk,Mr1,Mr2,Rmr
    Waviness parameter:Wa,Wt,Wp,Wv,Wz,Wq,Wsm,Wsk,Wku,Wmr
    Original contour parameter:Pa,Pt,Pp,Pv,Pz,Pq,Psm,Psk,Pku,Pmr

    Note:

    1, H is the measured height in the horizontal position;

    2, 2mm < R < 10mm standard ball, the sampling arc angle is 120°;

    3, 60°, 90° angle block, the corner side sampling length is 5mm

    4, λc is 2.5mm, measuring speed is ≤0.3mm/s;

    5, 2mm<R<10mm standard ball, sampling arc angle is 120°;

    6, above parameters are all at 20 °C ± 5 °C, ladder The temperature was measured not exceeding 2 ° C / h and the ground vibration maximum RMS < 50HZ 2.5 μm / S > 50HZ 5.0 μm / s.


    System Components


    Sensor: R series without head roughness sensor

    Resolution ratio:65536:1/262144:1
    Range:±420µm/±620µm
    Linear precision:R:±4%/±3%
    Residual noise:≤0.007µm/≤0.005µm
    Roughness reference:Guide,No lead
    Feature description:No-head roughness sensor, good frequency response characteristics, wide signal bandwidth, is the best roughness sensor type.


    Driver: Dsh Low Noise Driver/Dch Low Noise Ceramic Driver(Can choose according to your needs)

    ● Rail travel:100-150mm/180~220mm
    ● Number interval: 0.05~2µm/0.05~5µm
    ● Contour straightness:0.3µm/100mm
    ● Roughness residual value:≤0.005µm
    ● Maximum moving speed:20mm/s
    ● Minimum measurement speed:0.1mm/s
    ● Feature description:Low noise actuator can meet the requirement of profile measurement accuracy of standard parts, and the measurement requirement of Ra greater than 0.025 micron can be met with roughness sensor.


    Column member: Cnf High Speed Column / Cnfl High Speed Long Column

    (Can choose according to your needs)


    ● Range:320~420mm / 520~620mm
    ● Maximum moving speed:20mm/s
    ● Minimum moving speed:0.2mm/s
    ● Positioning accuracy:0.005mm
    ● Feature description:High-speed column, frame column, long-term use of non-deformable, precision and fast transmission structure, fast moving speed, wide speed range, high positioning accuracy


    Platform components: Mpe Integral Ergonomic Machine Table


    ● Material:marble
    ● Specification:500*800,500*1000
    ● Feature description:Integral design, compact structure, convenient maintenance, saving use space, ergonomics, reduce operator fatigue strength.
