Our visual measuring machine has below feature:
▶ Granite base and column, excellent stability;
▶ The Z-axis adopts high-precision linear guide and servo motor
control system to realize automatic focusing, eliminate the error
of artificial focusing, and improve the measurement accuracy and
stability;
▶ Aluminum work stage,make the motion control fast reacting and
flexible;
▶ Programmable 3-ring 4-section LED surface light source,
transmission parallel LED contour light source system, and the
built-in light adjustment module of the software can freely control
the brightness of light in 3 rings and 4 zones.
The configuations of our visual measuring machine are as below:
◉ 3 axis 0.5um resolution linear scales
◉ High performance Auto focus function
◉ Compatible with Renishaw touch probe
◉ Aluminum work stage and hard anodizing
◉ 3 rings 8 section LED ring light software control and
programmable
◉ Parallel light path LED contour light software control and
programmable
◉ 1.2M pixel HD digital camera◉ Integrated core control box
◉ Z axis motorized control
◉ HIWIN linear guide way
◉ Manual pulse generator for Z axis movement control
◉ With Laser indicators for auxiliary positioning and focusing
◉ 0.7-4.5X manual dented zoom lens with magnification signal
feedback sensor
Our visual measuring machine can add probe to realize 3d function
◉ Easy calibration
◉ Multiple angle touching
◉ Fast coordinates system setting
◉ Compatible to full line of Renishaw stylis
◉ CAD module supported(Optional)
◉ 3D drawing output
◉ Star probe compatible
◉ 3D dimension measuring
◉ Image and touch probe combine measuring
◉ Probe rack supported(Optional)
Our visual measuring machine's parameter are as below chart shows:
| Extra200 | Extra300 | Extra400 | Extra500 |
| Dimension(mm)(LxWxH) | 550*540*930 | 600*740*980 | 700*840*980 | 800*940*980 |
| Measuring range(mm)(XxYxZ) | 200*100*150 | 300*200*200 | 400*300*200 | 500*400*200 |
| Measuring Accuracy(μm) | 2.5+L/100 | 3.0+L/100 |
| Repeatability(μm) | 2.5 | 3 |
| Weight(kg) | 140 | 190 | 240 | 290 |
| Image and Measuring | Camera | 1.2M pixel HD digital camera |
| Lens | 0.7-4.5X manual dented zoom lens with maganification signal
feedback sensor |
| Magnification | 18-195X(For reference only.With different camera and lens the
magnification will be different.) |
| Field of View | 8.1mm~1.3mm |
| Working distance | 80mm |
| Linear scale resolution | 0.5μm(0.1μm optional) |
| Driving system | X, Y axis manual control, Z axis close-loop CNC control and AUTO
FOCUS function available |
| Illumination | Programmable 4 sections Led ring surface light,parallel LED contour
light 8 sections LED ring light,co-axial light,for option. |

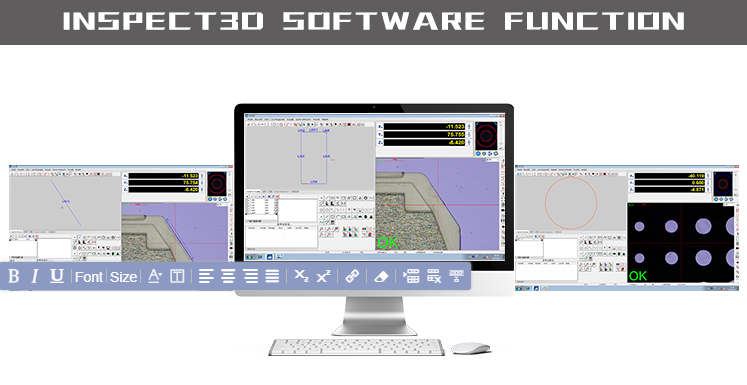

INSPECT 3D VISION MEASURING SOFTWARE
The UNIMETRO INSPECT3D software is with user friendly UI, easy to
learn,
powerful function, allows the users to achieve fast and precise
measuring.
The software is offering full English language UI, also allows new
language development.
◉ Input CAD file and measure
◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently
Dongguan UNIMETRO Precision Machinery Co., Ltd
Dongguan UNIMETRO Precision Machinery Co., Ltd is a professional
supplier of metrology products with 9 years experience. We devote
ourselves to developing, assembling, and sales of vision
measurement machines, tools inspection machines, metrology
accessories and special metrology fixtures. Also we are integrating
the best metrology resources in the world and have built a mature
supply chain for other metrology equipment and products. The
UNIMETRO products have been sold to more than 20 countries and
regions, and contribute our service and support to different
customers in different industries such as mold, plastic injection,
electronics, semi conductor, aviation and automotive. UNIMETRO has
the leading advantage of outstanding R&D capability and
detailed oriented production process. We have got more than 15
patents for our products and we will always keep the leading
position of innovation in the metrology industry. Professional,
sincere, responsibility, and honest are the key characters of the
UNIMETRO people. And we are always expecting long term cooperation
with you! UNIMETRO will always offer our best support and resources
to our partners!
