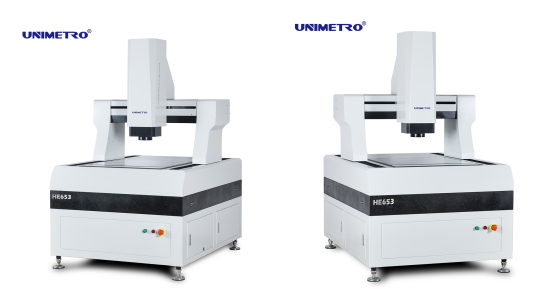

Full Automatic PCB Vision Measurement Machine WIth Touch Probe

The HE series high accuracy gantry type Visual Measurement Systems combines high accuracy and high efficiency,offers high speed measuring for the geometric,elements,of different kinds of parts. The HE series is widely used in varies industries and products as PCB, copper clad laminate,pad glass,LCD modules,and insulation materials etc.

Finite elements analysis is introduced in the designing process of the HE series,ensure high rigidity and accurate mechanical structure.The machine base is using closed frame movable bridge type structure,which is simple and offers high loading capability and the best motion performance.

PCB vision measurement machine features:
>> Movable gantry structure and the workpiece is fixed when measuring;
>> Four axis CNC full-automatic closed-loop control, full-automatic measurement;
>> 000 grade granite base and beam, stable and reliable;
>> Open grating ruler with resolution of 0.1 um, high precision and good stability;
>> Precision linear guide rail, grinding grade ball screw and Panasonic AC servo motor ensure the stability of positioning accuracy of machine motion system;
>> High resolution color camera to meet the requirements of clear observation and stable measurement;
>> 6.5x continuous automatic zoom lens, accurate automatic zoom, one pixel correction is enough;
>> The programmable 5-ring 8-zone LED surface light source and transmission parallel LED contour light source system can realize 256 level brightness adjustment intelligently;
>> The imported contact probe is configured to realize 3D measurement;
>> Immeasuring4.2 automatic image measurement software with independent property rights is provided as standard, which is powerful and easy to use;

Our PCB vision measurement machine has powerful software to support.

▶With the External-Array RationalVue composite measuring software,the ULTRA series is capable to offer powerful 2D/3d composite measuring function;

▶Simple and easy to understand operation interface makes measurement more simple and efficient;

▶An automatic measurement program can be set to complete batch measurement efficiently and quickly.

Our PCB vision measurement machine details are as below chart shows:
