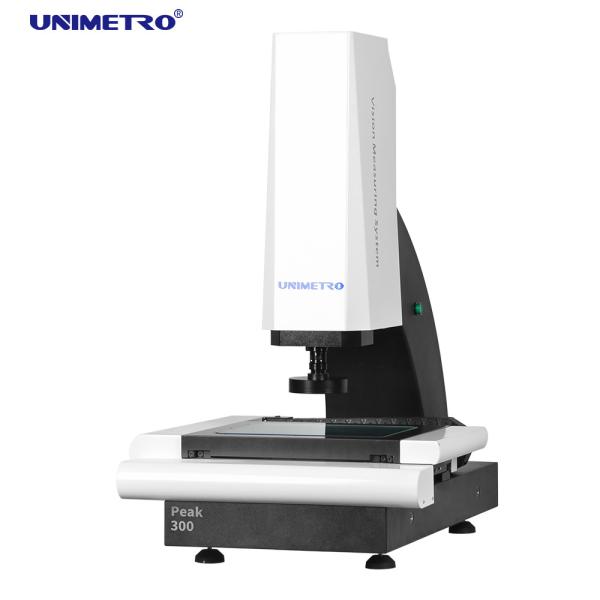

Full-Automated Video Metrology Measuring Instrument For Industrial Inspection

PRODUCT OVERVIEW:

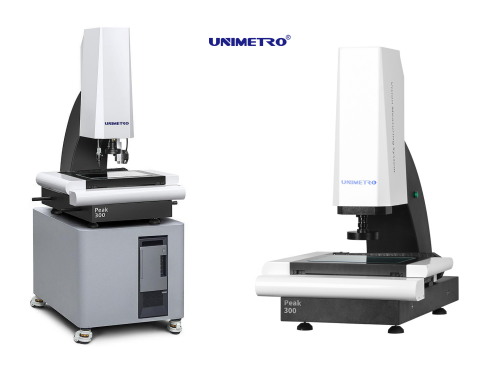

Optional Electricity Cabinet Standard Appearance

Parameters

Model	PEAK 300	PEAK 400
Dimension(mm)(L*W*H)	850*650*1060	1000*800*1080
Measuring Range(mm)(X*Y*Z)	300*200*200	400*300*200
Accuracy(μm)	3+L/200	3+L/200
Repeatability(μm)	3	3
Weight(kg)	120	150
Camera	Industrial grade analog CCD camera and SV2000E video card
Lens	Manual dented zoom lens 0.7-4.5X / 0.7-4.5X manual zoom lens with signal feedback (Optional) / Auto zoom lens (Optional)
Magnification	18-188X (Different combination of camera and lens leads to different magnification range
FOV	8.1-1.3mm (Different combination of camera and lens leads to different FOV range)
Working Distance	108mm
Linear scales resolution	0.0005mm
Illμmination	Programmable 3 rings, 8 sections surface ring light, programmable parallel contour light

Features

◆ Quality details control

1. Granite base and column, excellent stability;

2. Aluminum work stage, make the motion control fast reacting and flexible;

3. Work stage with hard oxidation surface processing anti-scratch;

4. Standard with precision linear guide, AC servo motor etc., to ensure the precision and stability of the motion system;

5. Integrated control system, embedded with motion control, and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.

◆ High-performance configuration

1. XYZ three-axis CNC automatic control and accurate positioning;

2. 0.1 um high precision glass linear scale to ensure the positioning accuracy and measurement accuracy of the system;

3. 6.5x high-resolution click zoom lens, accurate doubling and one-time pixel correction only needed;

4.With programmable surface 3-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatically control the brightness in the 8-division and realize 256 level brightness adjustment intelligently.

◆ Efficient measurement software

1. With the External-Array RationalVue composite measuring software, the ULTRA series is capable to offer powerful 2D/3d composite measuring function;

2. Simple and easy to understand operation interface makes measurement more simple and efficient;

3.Automatic measurement program can be set to complete batch measurement efficiently and quickly.

◆ Flexible expansibility

1.Multi types of non-contact sensors and fast fixturing system are for option, which can satisfy different measuring requirement from different customers

2. Movable color LED ring light is available for the ULTRA series, which makes the series more flexible and powerful to different parts with different kinds of materials or shapes, offers more powerful measuring application.

3.Thanks to the flexible expansibility of PEAK series, it is compatible with touch probe, non-contact measuring sensors and robot arm, highly increase the measuring efficiency,
