Good quality optical measurement equipment manual vision measuring
machine vmm machine
Our manual vision measuring machine can be operated as below video
shows:
◉ Granite base and column, excellent stability;
◉ Aluminum work stage,make the motion control fast reacting and
flexible;
◉ Using HIWIN linear guide way and high-precision linear guide rail,
with aluminum work stage and hard anodizing surface processing,
ensures the high dynamic performance and long life cycle usage of
the machine.
◉ Integrated control system,embedded with motion control,and all
signal control as illumination and linear scale reading, ensures
the performance of the machine is extremely stable.
◉ 3 axis 0.5um resolution linear scales
◉ High performance Auto focus function
◉ Compatible with Renishaw touch probe
◉ Aluminum work stage and hard anodizing
◉ 3 rings 8 section LED ring light software control and
programmable
◉ Parallel light path LED contour light software control and
programmable
◉ 1.2M pixel HD digital camera
◉ Integrated core control box
◉ Z axis motorized control
◉ HIWIN linear guide way
◉ With Laser indicators for auxiliary positioning and focusing
◉ 0.7-4.5X manual dented zoom lens with magnification signal
feedback sensor
FEATURES
Our manual vision measuring machine can realize 3D function by adding probe.
◉ Easy calibration
◉ Multiple angle touching
◉ Fast coordinates system setting
◉ Compatible to full line of Renishaw stylis
◉ CAD module supported(Optional)
◉ 3D drawing output
◉ Star probe compatible
◉ 3D dimension measuring
◉ Image and touch probe combine measuring
◉ Probe rack supported(Optional)
Parameters
| Model | BASIC 200 | BASIC 300 | BASIC 400 | BASIC 500 |
| Dimension(mm)(L*W*H) | 550*540*930 | 600*740*980 | 700*840*980 | 800*940*980 |
| Measuring range (mm)(X*Y*Z) | 200*100*150 | 300*200*200 | 400*300*200 | 500*400*200 |
| Measuring Accuracy (μm) | 2.5+L/100 | 2.5+L/100 | 2.5+L/100 | 3+L/100 |
| Repeatability (μm) | 2.5 | 2.5 | 2.5 | 3 |
| Weight (kg) | 140kg | 190kg | 240kg | 290kg |
| Image and Measuring | CCD | 1.2M pixel HD digital camera |
| Lens | 0.7-4.5X manual dented zoom lens with maganification signal
feedback sensor |
| Magnification | 18-195X ( For reference only. With different camera and lens the
magnification will be different. ) |
| Field of View | 8.1~1.3mm |
| Working distance | 80mm |
| Linear scale resolution | 0.5 μm( 0.1μm for option ) |
| Driving system | X,Y,Z axis manual control |
| Illumination | Programmable 4 sections LED ring surface light , parallel LED
contour light , 8 sections LED ring light , co-axial , for option |
L is measuring length(mm), the mechanical accuracy of Z-axis and
focus accuracy is related to the surface of the workpiece.
**Magnification is approximate value, it is related to the
dimension of monitor and resolution.
Field of view(mm) = (diagonal*Horizontal*Vertical)
0.5X or 2X objective is optional available, and realize image
magnification: 13X~86X or 52X~344X.
Software Functions
Our manual vision measuring machine use the powerful function software.

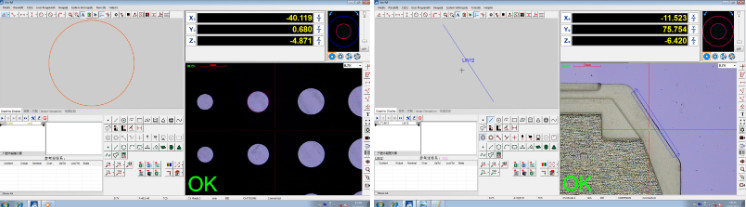

INSPECT 3D VISION MEASURING SOFTWARE
The UNIMETRO INSPECT3D software is with user friendly UI, easy to
learn,
powerful function, allows the users to achieve fast and precise
measuring.
The software is offering full English language UI, also allows new
language development
◉ Input CAD file and measure
◉ Parts array and macro measuring
◉ Auto focus and height measuring
◉ Navigating function helps fast locating
◉ Powerful geometric measuring function
◉ Multiple data reports and graphical data output function
◉ Flexible user program
◉ Creating reference elements
◉ Powerful edge detecting function
◉ Supporting multiple external accessories
◉ Auto calculation of the elements geometrical tolerance
◉ Measuring complicated production fast and conveniently
Company Information
Our Client&Agent
| FAQ |
|---|
![Visual Measurement Machine]() Q1: Are you a factory or trading company ? |
![Visual Measurement Machine]() A1: We are a factory and giving you the quickest reply in 24
hours. |
|---|
![Visual Measurement Machine]() Q2: What's your company mainly in? |
![Visual Measurement Machine]() A2: We are mainly produce Vision measuring machine,Coordinate
measuring machine ,CMM&VMM fixturesetc. |
|---|
![Visual Measurement Machine]() Q3: How to Choose the Appropriate Specification? |
![Visual Measurement Machine]() A3: As long as you tell us variety and size of product to be
measured, our professional team would advise you of measuring
instrument of suitable specifications. |
|---|
![Visual Measurement Machine]() Q4: Do you accept customized service? |
![Visual Measurement Machine]() A4: Be sure! We can provide not only typical machines, but also
the machines customized to customer's needs. |
|---|
![Visual Measurement Machine]() Q5: What is your warranty period? |
![Visual Measurement Machine]() A5: Our product warranty period is 1 year. Our product quality is
very stable, and we have
improved a lot on some breakable parts. You can rest assured of our
product quality. |
|---|
