108 Pieces CMM Fixture Kits Aluminum With Coding System
Programmable
FlexFix series coordinates measuring machine fixture
The Flexfix series coordinates measuring machine fixtures is
capable to increase the efficiency, repeatability and accuracy of
the workpiece measuring in the coordinates measuring machine. The
fast combination and coding system, ensures the flexibility of the
fixtures. No matter what the size, shape or materials of the
workpieces, the FlexFix series will offer complete fixing solution.
Workpiece fixing solution
The FlexFix series coordinates measuring machine fixture is applied
in aviation, automobile, electronics, or medical industries. We are
offering complete solution, to satisfy all workpiece fixing
requirement
The series is offering M6 or M8 screws for option, together with
the fast combination fixture kits. All the components are able to
combined easily and fast, no need for extra tools, largely increase
the fixing efficiency of measuring.

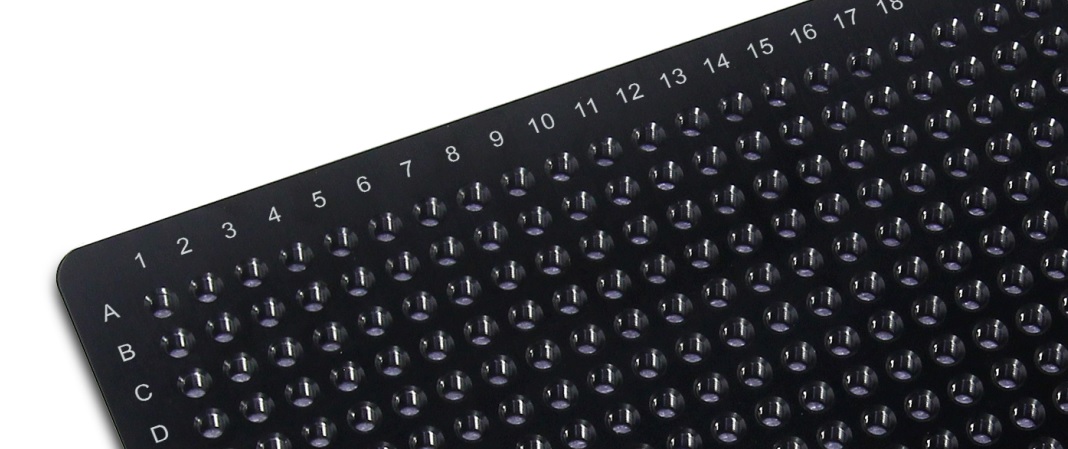

The base board is laser printed with codes, users are able to use
these codes for standard programming and recording, increase the
repeatability of the fixing, eliminating the measuring error caused
by the fixing offset. Increase the accuracy and repeatability of
the measuring result.
Advanced machining and surface processing
The FlexFix series coordinates fixtures are using CNC machining
technology, base boards are using hard anodizing for the surface
processing, flatness is under 0.05mm(Within 500mm). The fixture
kits components are using color anodizing for the surface, high
rigidity and hardness, avoiding the scratch during the operation
process.
All the tension press use the high accuracy spring steel materials,
stable recovery, ensures the stability of the pressing, increase
the repeatability of the fixing.
Parameters
| Product Name | Mark | QTY |
| 12*50mm standoff | 80001 | 6 |
| 12*30mm standoff | 80002 | 6 |
| 16*50mm standoff | 80003 | 6 |
| 16*30mm standoff | 80004 | 6 |
| 20*50mm standoff | 80005 | 6 | |
| 20*30mm standoff | 80006 | 6 | |
| 12*20mm standoff | 80007 | 6 | |
| 16*20mm standoff | 80008 | 6 | |
| 20*20mm standoff | 80009 | 6 | |
| Pusher damp | 800010 | 2 | |
| Screw pusher damp | 800011 | 2 | |
| Adjustable pivot joint | 800012 | 2 | |
| Adjustable jack stand | 800013 | 2 | |
| Magnet | 800014 | 4 | |
| Pin Standoff | 800015 | 2 | |
| Adaptor | 800016 | 6 | |
| Baseboard screw | 800017 | 2 | |
| V post | 800018 | 2 | |
| Screws | 800019 | 2 | |
| Adjustable slide | 800020 | 8 | |
| Tension clamp | 800021 | 4 | |
| Hold down clamp | 800022 | 2 | |
| Short tension damp support | 800023 | 2 | |
| Long tension clamp support | 800024 | 2 | |
| Cone | 800025 | 3 | |
| Nylon cone | 800026 | 3 | |
| Screwdriver | 800027 |
| |
