| NO. | Product name | Quantity | Functional description |
| 80001 80002 80007 | Combined support rod (Diameter12) | 6 pc/20MM 6 pc/30MM 6 pc/50MM | Through different combinations of high and low, the workpiece can
be supported and positioned, and other parts of the fixture can be
supported with different levels. |
| 80003 80004 80008 | Combined support rod (Diameter 16) | 6 pc/20MM 6 pc/30MM 6 pc/50MM | Through different combinations of high and low, the workpiece can
be supported and positioned, and other parts of the fixture can be
supported with different levels. |
| 80005 80006 80009 | Combined support rod (Diameter 20) | 6 pc/20MM 6 pc/30MM 6 pc/50MM | Through different combinations of high and low, the workpiece can
be supported and positioned, and other parts of the fixture can be
supported with different levels. |
| 800010 | spring plungers | 2 pc/set | Provide elastic compression force, which can be selected when other
fixing methods may cause impact. |
| 800012 | Universal Joint with Damping | 2 pc/set | Damped universal joint, built-in Angular indexing of 15 degrees can
be locked at fixed or arbitrary rotation angles. | |
| 800013 | High adjustable brace | 2 pc/set | You can connect other parts and adjust them to different heights. | |
| 800014 | Magnetic flat support | 4 pc/set | Reliable and Repeatable Fixation of Steel Workpieces by Magnetism. | |
| 800015 | Flat head support block | 2 pc/set | Fixed and supported thin workpieces to maximize installation space | |
| 800016 | Male connector | 6 pc/set | Connect the parts of the fixture and fix and support the workpiece
at the same time | |
| 800017 | Bottom plate fastener | 2 pc/set | Fix fixture bottom plate on marble working platform | |
| 800018 | V-shaped support column | 2 pc/set | V-type support column with self-adaptive characteristics, measuring
the necessary firmware of shaft parts | |
| 800019 | V-shaped support column | 6 pc/set | Fixed fixture assembly on floor | |
| 800020 | Movable support block | 6 pc/set | Can ensure that the use of the floor mounting holes can not be
involved in the fixed position, stepless adjustable | |
| 800021 | Medium pressure plate | 5 pc/set | Medium-sized pressure, special design of handle position, easy and
comfortable to work, very relaxed and compact | |
| 800022 | Small chuck | 2 pc/set | Adjustable in both directions, easy to operate, and can provide
greater compaction force. | |
| 800023 | Long pressure plate support rod | 2 pc/set | Long pressure plate support rod, when the pressure plate adjusting
range needs to be large, choose to use | |
| 800024 | Short Pressure Plate Support Bar | 3 pc/set | Short pressure plate support rod, when pressure plate adjustment
range is not large, choose to use | |
| 800025 | Aluminum conical support | 3 pc/set | It can be used to locate holes and axes. | |
| 800026 | Nylon conical support | 3 pc/set | It can locate holes and shafts to avoid surface damage of products. | |
| 800027 | Crowbar | 2 pc/set | With the force of crowbar, it is very easy for us to rotate the
supporting rod and the cylindrical fixture assembly. | |
| 800028 | Parts pallet | 1 pc/set | The innovative fixture component tray is put into the packing box
when it is not working. When it is working, it is taken out and
placed on the working platform as a whole, so that the work looks
orderly and the product has a very high grade. At the same time,
the fixture component is not easy to lose. | |

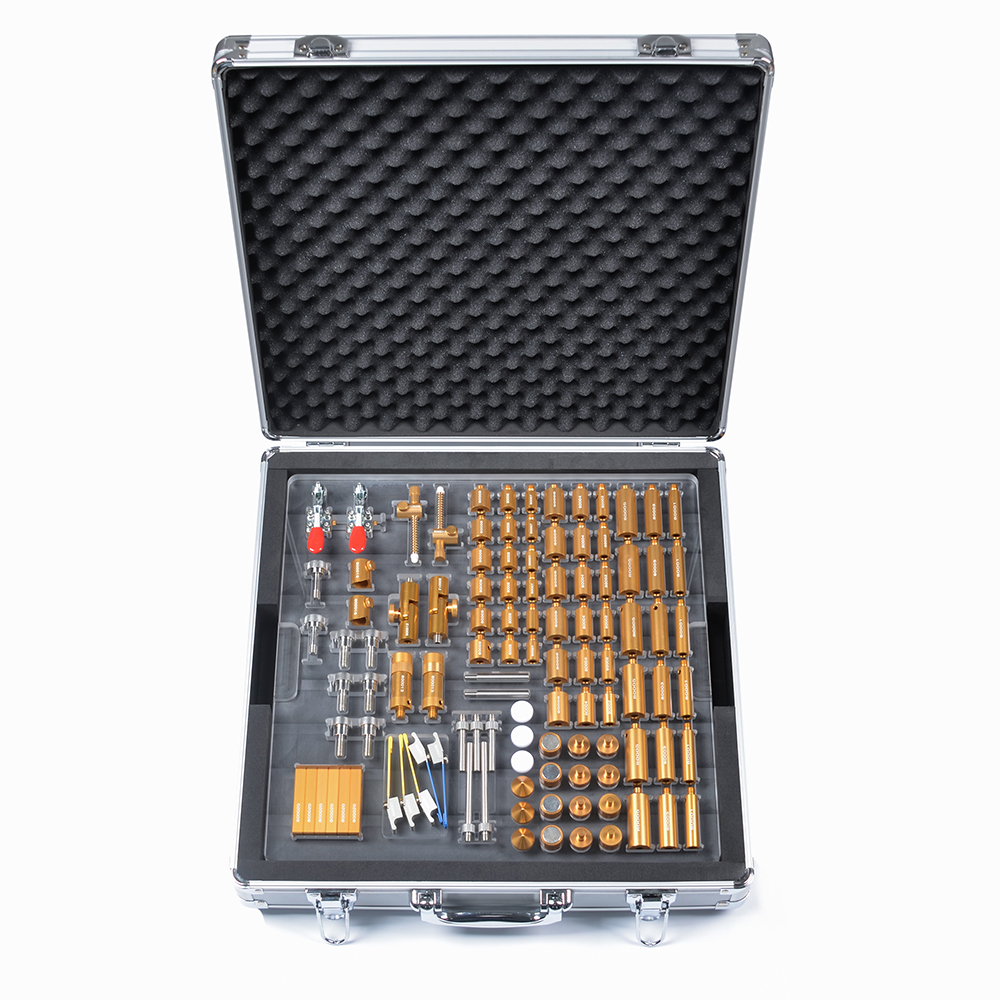

| 800029 | 108 pieces suitcase | 1 pc/set | Firmware tray and bottom plate can be placed in the packing box.
The handle is made of aluminium alloy. It is beautiful, durable and
has large bearing capacity. | |
| Base plate | 400*300 400*400 500*500 600*600 Customize | Arabic numerals and English letters are engraved in the horizontal
and vertical direction of the bottom plate to facilitate the
recording of the fixture coordinates. According to the coordinates,
the former fixture status can be quickly restored | |
