3D Measurement Software 2D VMM Measuring Software Edge Function Filter Function

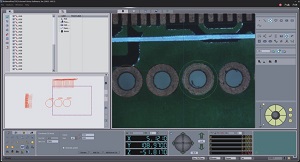

The Rational Vue 2D Measurement Software series offers universal and powerful 2D image measuring function to users. It offers basic elements measuring such as points, lines, angles, circles, distance, etc. The Rationvue series provides outstanding motion control to the automatic machine. Together with the strong edge detecting function and easy pprogramming, ensures very high measuring efficiency in mass measuring. It is the best vision measuring software in cell phones, plastic products, electronics, etc which need mass production and quality control.

Features

The thoughtful machine calibration improves accuracy greatly.

RationalVue offers CCD length-width scale calibration, CCD auto-rotate/horizontal calibration, CCD lens coaxial calibration and CCD pixel calibration, With multiple calibration methods, RationalVue uttermost improves measure accuracy of machine, Moreover, RationalVue developed lens distortion calibration which enhances the precise of large wide-angle lens dramatically. We pay highly attention to precise improvement, even for 0.1um.

Burrs filtering

RationalVue can filter burrs of measure product that removes those convex or concave places to measure completely with a great accuracy.

The edge function of RationalVue can capture those fuzzy and rough edges easily. It means truly realize the automation measurement.

Color filter

Set required measuring color; remove the effect of the other colors

Grey level filtering, remove white highlight edge effect. Filter the unmeasured edge to ensure weak

edge will not be affected by clearer edge

Special Edge processing

Remove edge impurities Remove the effect of black Remove the effect of white

shadow edge highlight edge

RationalVue has many measuring settings. They all can be set according to real situation to satisfy different measurement to complete CNC inspection.

Complete feature measurement

RationalVue provides measure point, line, circle, arc, ellipse, slot, rectangle and curve scan, and girth and flaw area. And make form comparison with CAD nominal curve.

Powerful Edge function

RationalVue adopts advanced weak-edge algorithm. Measurement of weak-edge line can be finished without any special settings.

Optical focusing

With world advanced focus algorithm under independently development, RationalVue can quick and exact complete part focus with 2-3 seconds. The repeat focus can reach to 0.003 mm which can be used for the tolerance measurement, such as height, flatness etc.

Curve scan & FormError Analysis

RationalVue can track product edge automatically to scan edge curve profile of any product. And it also can make profile comparison with imported CAD nominal curve, calculate curve profile, and output curve FormError graphical report.

Grid board measurement

RationalVue has a professional measuring tool special for grid board that can achieve measuring of grid line easily. It is suitable for solar energy, TV industry etc.

Multi-layer segment measurement

RationalVue can realize multi-layer line by one-button, and it allows user to select any line of them.

Advanced sub-pixel algorithm

RationalVue adopts international advanced sub-pixel algorithm to make measurement accuracy increasing dramatically. By comparison test, it shows that select video measuring machine with RationalVue will increase precise and repeatability greatly.

Path optimization

Path optimization will make measure path to shortest. It can enhance measurement efficiency as much as possible to reduce cost for customers.
