HE Series Gantry Type CNC Automatic Vision Measurement Machine
Product Decription
The HE series high accuracy gantry type vision measurement machine
combines high accuracy and high efficiency, offers high speed
measuring for the geometric elements of different kinds of parts.
The HE series is widely used in varies industries and products as
PCB, copper clad laminate, large glasses, LCD modules, and
insulation materials etc.
Finite elements analysis is introduced in the designing process of
the HE series, ensures high rigidity and accurate mechanical
structure. The machine base is using closed frame movable bridge
type structure, which is simple and offers high loading capability
and the best motion performance.
000 grade granite machine base, offers high rigidity, corrosion
resistance and high stability.
The work stage is able to preset multiple products fixturing
solution, also multiple lens combination is for option, satisfy
different measuring requirement from different customers.
Full close loop motion control system ensures the best movement and
positioning performance.
With the finite element analysis and the 000 grade granite, we get
the most reasonable and optimized machine frame design, which
ensures high rigidity and reliability.
The HE series high efficiency large size vision measurement machine
is using UWC motion controller and high torque motors, offers high
performance motion control, the high acceleration and fast locating
offers high efficiency in the measuring process.
UWC large size vision measurement machine solution package,
Panasonic motors for option
The machine frame is with moving gantry structure which ensures a
simpler, smarter structure with higher loading and better movement
Performance.
Detailed Images
X/Y axis use accurate liner guide way, Z axis uses high performance
cross rail with the original German friction driven group.
Renishaw linear scales included, with high accuracy, stability and
long life cycle.
According to users’ requirements the working stage is able to
preset with multiple type of products fixtures, also multiple lens
and cameras combination option are available, gives more
flexibility to users.
With the powerful Rational-Vue software users can achieve
complicated measuring programs easily. In the mass production the
HE series vision measurement machine can be a powerful measuring
instrument.
Parameters
| Model | HE 652 | HE862 | HE1080 | HE1210 | HE1512 | HE1812 |
| X,Y Travel(mm) | 500*600 | 600*800 | 800*1000 | 1000*1200 | 1200*1500 | 1200*1800 |
Z-axis Travel(mm) | 200(can be raised according to the requirements of customers) |
Load Capacity | approx. 35 kg |
| Dimension (mm) | 1700*1180*1750 | 1700*1280*1750 | 1900*1480*1750 | 2100*1680*1750 | 2500*1880*1750 | 2700*1880*1750 |
| Weight(kg) | 1500 | 1800 | 2900 | 3200 | 4400 | 4800 |
Resolution | 0.5μm(0.1um for option) |
Camera | 2M HD GIGA digital camera |
Zoom Lens | professional auto zoom lens Zoom lens magnification: 1~10X |
Video Magnification | 18~195X (According to the different models of the selected camera,
its magnification will change; the actual magnification is subject
to the measured data) |
FOV | 8.1~1.3mm (According to the different matching schemes of camera
and lens, the field of view will change accordingly, and the actual
field of view is subject to the measured data) |
Accuracy* | ≤ (3+L/200)μm |

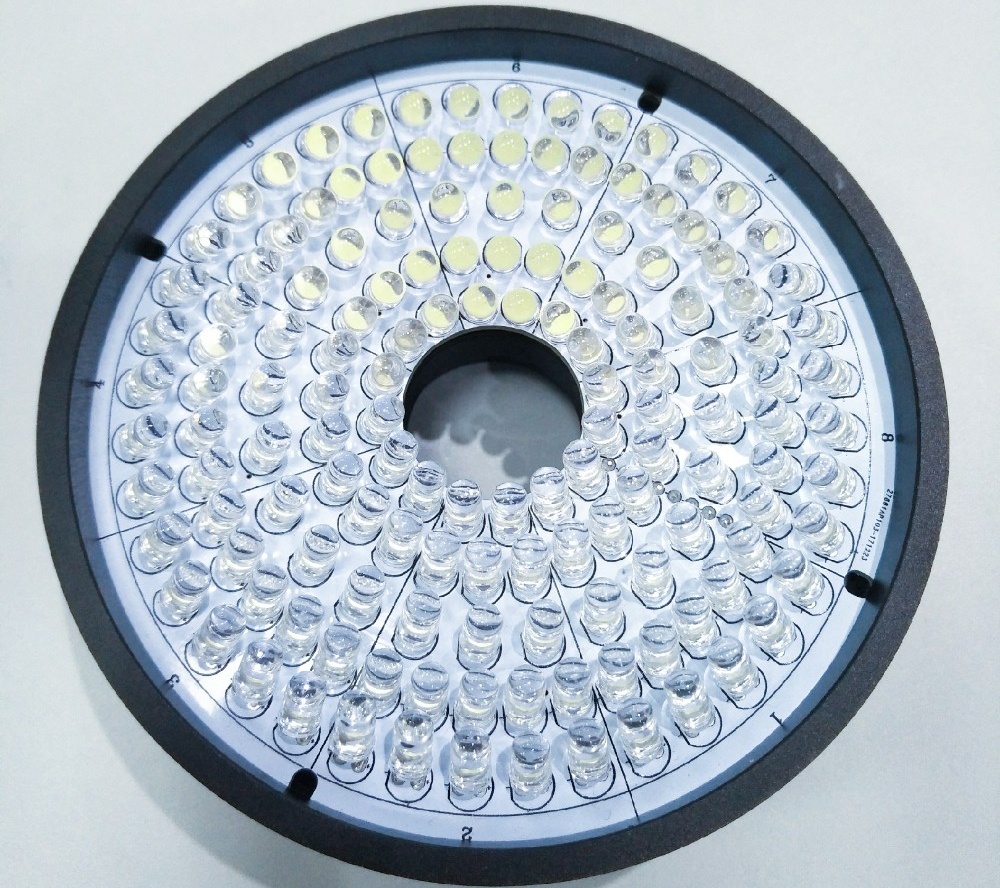

Illumination | Programmable 5-ring 8 sections LED surface illumination (40
sections ring light,Co-axial light,movable multi color ring light
for option) |
Optional solutions
Illumination: | Lens: | Touch probe: | Laser sensor |
4/8/40 sections LEDsurface ring light
48 sections 4 colors LED ring light
Movable 4 colors LED ring light | Manual dented zoom lens
Auto zoom lens
Manual dented zoom lens with co-axial light
Auto zoom lens with co-axial light | Renishaw MCP kits
Measuring error<=0.75µm
Renishaw PH6+TP20
Measuring error<=0.35µm | KEYENCE not-contact laser sensor
White light measuring sensor |
