Description

Metroking series 3D coordinate measuring machine is a reflection of experience of high accuracy measuring machine developing and manufacturing. Approved by multiple industries, the Metroking series become a typical model in the high precision measuring industry. It is fit for the high accuracy work piece measuring and curve scanning, also for official institution and the measuring of the standard piece.

The Metroking series high precision CNC 3D coordinate measuring machine is using granite material, finite element design and gantry structure, ensure high stability and reliability.

The granite cross beam, integrated machine base, column working stage and the Z axis form a full-closed framing structure, ensures the features of high stability, low deformation and outstanding thermal stability.

The 3 axis of the Metroking series 3D coordinate measuring machine are using advanced soft steel wire synchronous gear belt as driving system, the running process will not create any noise, fast locating and long life cycle.

The Y axis is using DUO dovetail guide way as driving system, 3 axis using center driving, the high accuracy linear scales are installed in the center position, restraining the offset of the axis movement, minimize the abbe error.

Using high power servo motors, largely improve the motion control performance, achieves much better acceleration, braking, and rapid running.

The Metroking series 3D coordinate measuring machine is using high performance air system, the Z axis is with air balance, improves the locating accuracy, also makes the movement reliable and smooth. 3 levels precise filter system, ensures a long life cycle of the guide way. Using high performance power cable and towline, ensures the stability of the electronics.

High quality granite worktable:

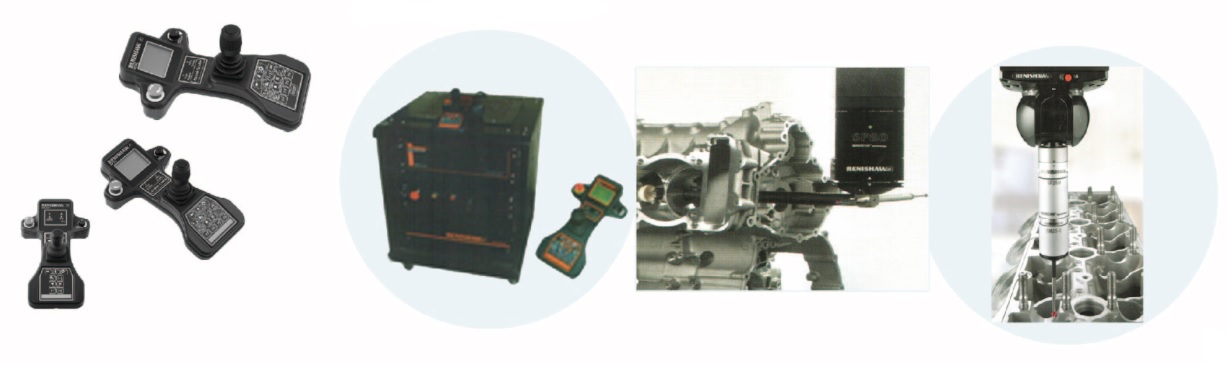

The advanced Renishaw UCC series Controller




Universal controlling for the 3D coordinate measuring machine

Metroking series 3D coordinate measuring machine is compatible with full line trigger probes and contact type scanning probes. Also laser line scanning probes, high accuracy point scanning head and LV series high resolution CCD digital optical vision measuring head, to achieve high accuracy complicated curve high speed scanning (Reverse engineering), micro dimension high accuracy non-contact measuring.

TECHNICAL PARAMETERS

Working conditions

Power Voltage: 220V

Air Pressure: 0.7-1.0Mpa

Filter Accuracy: 0.3um

Air Supply: 0.12-0.45m³/min

Temperature Range: 18-22°C

Hourly Temperature Cycle: 1°C/h

Thermal Gradient: 1°C/m

Relative Humidity: 55%-65%

Since established in 2007, UNIMETRO has been focusing on the research and development and manufacturing of coordinate measurement technology. We have obtained 15 core patent technologies and won the title of national high-tech enterprise. At the same time, UNIMETRO has been in the leading level in the field of 3D composite measurement technology!

In 2016, UNIMETRO opened a new chapter in overseas business. At present, it has set up sales and service centers in more than 20 countries and regions around the world, providing high-quality services to more than 2000 customers at home and abroad in more than 150 industries. UNIMETRO is determined to become the innovator of precision measurement industry and regards the further improvement of manufacturing precision as a lifelong mission!

We have a group of professionals who love the metrology career. With the team's professional technical knowledge and more than 10 years of experience in the visual measurement industry, 3d-cmm detection industry and non-standard online detection field, we provide customers with complete measurement solutions. Unimetro maintains cooperation with Renishaw, external array, IDS, THK, Panasonic, sentech and other measurement technology companies to continuously enrich the product line to provide users with more complete product service solutions to meet the detection requirements in different fields.

Unimetro metrology not only has core products such as image measuring instrument, coordinate measuring instrument and contour projector, but also has core components of optical metrology, such as CMM controller, lens, camera system, grating ruler, CMM and CMM fixture, light source system, etc.
Our customers are widely distributed in hardware, mold, circuit board, electronic components, plastic / rubber products, stamping parts, clocks and watches, connectors, automobile testing tools, automobile manufacturing, touch screen testing and other fields, bottle blank testing and other industries. In quality assurance, product design, process control and other important links, has become a reliable partner of many well-known enterprises.
