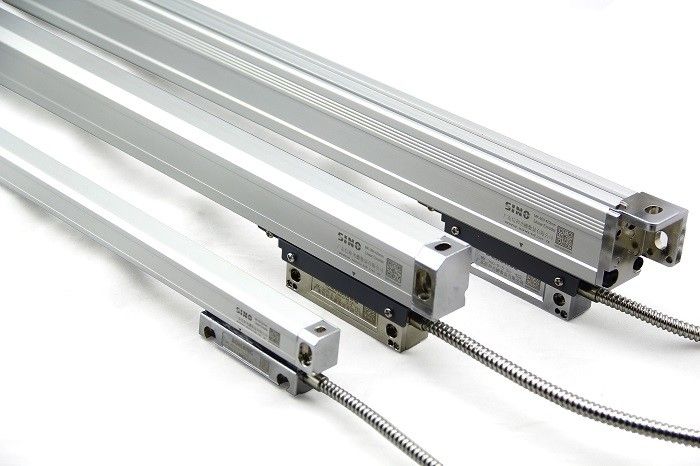

Machine Tool Optical Linear Scale 0.001 MM TTL 422
Introduction
The ULS series linear scales are with advanced structure design,
using vertical bearing design for optical grating linear transducer
in the slide carrier, ensure the optical sensor running smoothly
and stably on the scale.
The ULS series linear scales are effective for stain, oil
resistance, it is the best linear scales users can use on milling
machines, grinding, lathe, EDMs, wire cut and measuring systems,
etc.
All scales are tested before releasing, ensures the reliability of
every single scale for the users.
Detailed Image

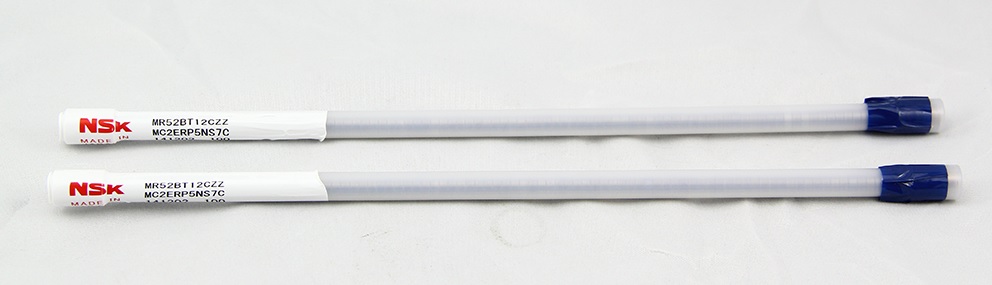

Bearings of the slider
NSK bearings are used in the reader head slider, ensures high
accuracy and stability. Lower noise and longer life cycle.
Infrared LED
Using high performance infrared LED, stable lighting performance,
the optoelectronic shifting value up to more than 60%, increase the
using hours.
Subdivision IC
Using German IC, strong performance, high accuracy and outstanding
transferring effect.

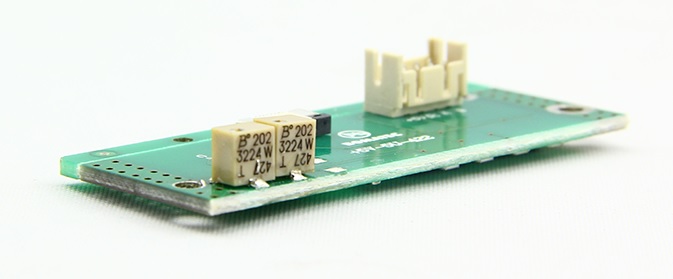

Potentiometer
Using US precise potentiometer, high resolution, wide resistance
value range, reliable and with small size.
Signal diagram

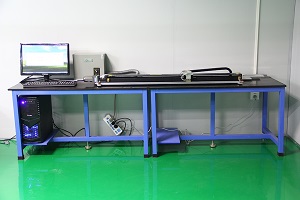

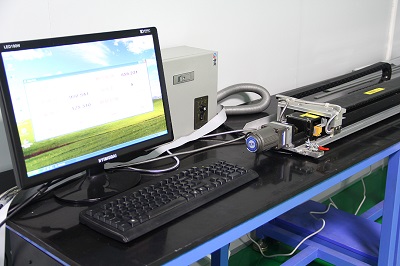

Quality control
Application
The ULS series optical linear scale is widely used in milling
machines, grinding, lathe, EDMs, wire cut and measuring systems,
etc.
The ULS series used on a vision measurement machine
The ULS series used on milling and grinding machine
