    High Speed Optical Linear Scale 3 M 0.0005 MM Resolution Absolute Linear Encoder

    Ask Lasest Price
    Brand Name : UNIMETRO
    Model Number : ULA / ULB
    Payment Terms : T/T
    Supply Ability : 200 per month
    Delivery Time : 5 work days
    Price : Discussible
    • Product Details
    • Company Profile

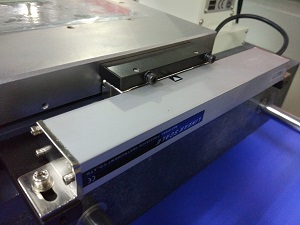

    High Speed Optical Linear Scale 3 M 0.0005 MM Resolution Absolute Linear Encoder


    Machine Tools Optical Linear Scale 3 M 0.0005 MM Resolution High Speed


    Using a single large size illumination formed by independent designed optical lens, more balance and average brightness of the light source than normal LED illumination, ensures the stability of the high resolution status.


    The single large size illumination eliminates the problem of the aging process out-sync of the 4 couples of LED groups, increase the reliability of the signal even after long time usage, largely reduce the cost of maintenance.


    The receiving module is using 6 large size photodiodes integrated, ensures the consistency of the electronics parameters, offers high quality signal output, increase the anti-noise capability, locating accuracy and reacting speed.


    Using high performance double shield cables, water proof and stable, suitable for long distance transmitting.


    Using self-designed sinusoidal wave signal subdivision chip, pure hard ware processing, fast transmitting speed, the increment A/B signal output is up to 2.5MHZ.


    Every linear scale product will be checked and tested strictly, offering accuracy testing reports, ensures high quality and traceability.


    The slide movement using 5 high performance bearings, ensure the repeatability after long time used.

    The scale frame is using aluminum alloy material and anodizing surface processing, ensures the stability even in harsh environment.


    Application


    The ULA ULB series optical linear scales are wide used on milling machines, lathe, grinding machines, wire cut, and all the coordinates measuring machines and automation.



    Parameters


    Model

    Accuracy and output signal

    Length(mm)

    Resolution(mm)

    Grating distance(mm)

    R1(mm)

    Working speed(m/min)

    ULA05(Slim)

    ±(3+3LO/1000)um or higher, 2 channel TTL 0t and 90, also offering 4 channel TTL 0, 90, 180, 270

    50-1000

    0.0005

    0.02

    50

    30

    ULA05(Slim)

    50-1000

    0.001

    0.02

    50

    90

    ULA5(Slim)

    50-1000

    0.005

    0.02

    50

    90

    ULB05(Thick)

    50-1000

    0.0005

    0.02

    50

    30

    ULB1(Thick)

    50-3000

    0.001

    0.02

    50

    50

    ULB5(Thick)

    50-3000

    0.005

    0.02

    50

    90

    Others

    Phase offset error:90±15, working temperature: 0-40°C, stocking temperature:20-50°C

    Nominal length

    LO=50-1000mm

    Every 50mm is one level

    LO=1000-3000mm

    Every 100mm is one level

    Max.travel within 500mm

    Nominal length+30mm

    Signal cable length:2m

    Max.travel between 500-900mm

    Nominal length+30mm

    Signal cable length:3.5m

    Max.travel within 500mm

    Nominal length+30mm

    Signal cable length:2m


    Company Information

    Visual Measurement Machine
    Visual Measurement Machine
    Visual Measurement Machine
    Visual Measurement Machine

    Our Client&Agent

    Visual Measurement Machine
    Visual Measurement Machine
    FAQ
    Visual Measurement Machine Q1: Are you a factory or trading company ?
    Visual Measurement Machine A1: We are a factory and giving you the quickest reply in 24 hours.
    Visual Measurement Machine Q2: What's your company mainly in?
    Visual Measurement Machine A2: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
    Visual Measurement Machine Q3: How to Choose the Appropriate Specification?
    Visual Measurement Machine A3: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring instrument of suitable specifications.
    Visual Measurement Machine Q4: Do you accept customized service?
    Visual Measurement Machine A4: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
    Visual Measurement Machine Q5: What is your warranty period?
    Visual Measurement Machine A5: Our product warranty period is 1 year. Our product quality is very stable, and we have
    improved a lot on some breakable parts. You can rest assured of our product quality.
