Surface Roughness Tester Contour Measuring System Roughness And
Contour Measuring machine
Surface Roughness and Contour Tester High Level Analysis Multiple
Function Roughness measurement profilometer machine
Product Description
Roughness profile measurement analysis basis
The measurable elements of all surfaces include size, shape,
roughness and waviness. Many high-profile components need to
analyze all of the above elements.
◆ Dimensions: Surface functional shapes defined by the linear
relationship between radius, angle, distance, and features.
◆ Shape: deviation from the target shape of the surface (plane,
sphere, cone, etc.), usually caused by machine error
◆ Roughness: caused by factors such as cutting tools or machining
processes
◆ Waviness: Non-ideal machine effect caused by vibration,
insufficient rigidity or other unstable factors in the process
SPR2000 Series
Features: the best balance of performance and cost, with the best
price/performance ratio
★ High precision digital contour sensor
★ No head wide range roughness sensor
★ Large-scale profilometry, micro-profile measurement
★ Wide range roughness measurement
★ High-precision large-scale roughness, high-precision large-scale
contour measurement of composite models
Measuring Case

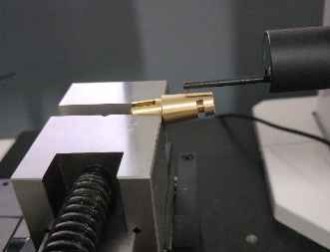

Engine casing Spool valve body

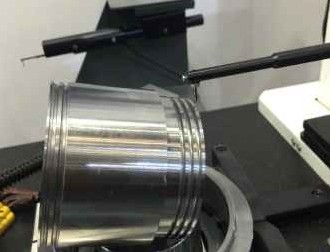

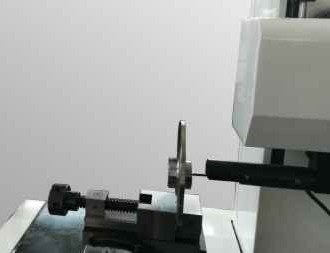

piston Automobile clutch parts
Recommended Size
| Specification number | SPR2012G-tdp |
| Measuring range | X-axis | 150mm |
| Z-axis | 420mm |
| Z1-axis | C:±12.5mm/R:±620μm |
| Contour accuracy | Z1 Linear precision1 | ±(0.8+|0.12H|)μm |
| Arc | ±(1.5+R/12)μm |
| angle | ±1′ |
| Straightness | 0.5μm/100mm |
| Roughness accuracy | Linear precision | ±3% |
| Residual noise | ≤0.05μm |
| Repeatability | 1δ≤1nm |
| Cutoff wavelength | 0.025,0.08,0.25,0.8,2.5,8mm |
| Rating length | λcX2,3,4,5,6,7 |
| Drive speed | X-axis | 0.5~20mm/s |
| Z-axis | 0.2-20mm/s |
| Measurement function | Profile | Line elements of various types of workpiece surfaces, point
features, distance between points and points, distance between
lines and lines, position of each element including distance,
parallelism, perpendicularity, angle, groove depth, groove width,
radius, can be performed Straightness analysis, convexity analysis,
profile analysis. |
| Roughness | Roughness function:Ra,Rp,Rv,Rz(jis),R3z,RzDIN,Rzj,Rmaz,Rc,Rt,Rq,
Rsk,Rku,Rsm,Rsm,Rs,RΔq,Rk,Rpk,Rvk,Mr1,Mr2,Rmr Waviness
parameter:Wa,Wt,Wp,Wv,Wz,Wq,Wsm,Wsk,Wku,Wmr Original contour
parameter:Pa,Pt,Pp,Pv,Pz,Pq,Psm,Psk,Pku,Pmr |
System Components
Sensor:Php Series Low Noise Digital Profile Sensor
● Resolution: 0.02-0.1um
● Range: ±7.5-±30um
● Linear precision: ±(0.7+|0.05H|)um
● Measuring force:0.7g
● Feature description:No guide type roughness sensor, with good
frequency response and wide signal bandwidth, is the best type of
roughness sensor.
Driver: Dsh Low Noise Driver/Dch Low Noise Ceramic Driver(Can choose according to your needs)
● Rail travel:100-150mm/180~220mm
● Number interval: 0.05~2µm/0.05~5µm
● Contour straightness:0.3µm/100mm
● Roughness residual value:≤0.005µm
● Maximum moving speed:20mm/s
● Minimum measurement speed:0.1mm/s
● Feature description:Low noise actuator can meet the requirement
of profile measurement accuracy of standard parts, and the
measurement requirement of Ra greater than 0.025 micron can be met
with roughness sensor.
Column member: Cnf High Speed Column / Cnfl High Speed Long Column
(Can choose according to your needs)
● Range:320~420mm / 520~620mm
● Maximum moving speed:20mm/s
● Minimum moving speed:0.2mm/s
● Positioning accuracy:0.005mm
● Feature description:High-speed column, frame column, long-term
use of non-deformable, precision and fast transmission structure,
fast moving speed, wide speed range, high positioning accuracy
Platform components: Mpe Integral Ergonomic Machine Table
● Material:marble
● Specification:500*800,500*1000
● Feature description:Integral design, compact structure,
convenient maintenance, saving use space, ergonomics, reduce
operator fatigue strength.
