Surface Roughness Tester Contour Measuring System Roughness And Contour Measuring machine

High Precision Roughness and Profile Tester Surface Roughness Contour Measuring Machine

Product Description

Roughness profile measurement analysis basis

The measurable elements of all surfaces include size, shape, roughness and waviness. Many high-profile components need to analyze all of the above elements.
◆ Dimensions: Surface functional shapes defined by the linear relationship between radius, angle, distance, and features.
◆ Shape: deviation from the target shape of the surface (plane, sphere, cone, etc.), usually caused by machine error
◆ Roughness: caused by factors such as cutting tools or machining processes
◆ Waviness: Non-ideal machine effect caused by vibration, insufficient rigidity or other unstable factors in the process

SER2000 Series

Features: the best balance of performance and cost, with the best price/performance ratio

★ High precision digital contour sensor
★ No head wide range roughness sensor
★ Large-scale profilometry, micro-profile measurement
★ Wide range roughness measurement
★ High-precision large-scale roughness, high-precision large-scale contour measurement of composite models

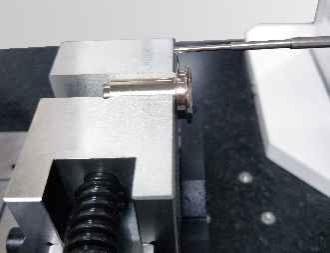

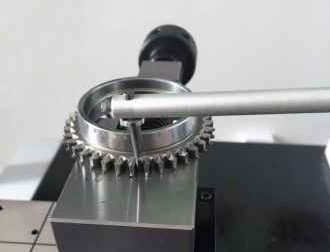

Measuring Case

Gearbox accessories Gearbox accessories

Gear Valve body

Recommended Size

System Components

Sensor:ER Series Inductive Roughness Profile Sensor

● Resolution ratio: 65536:1 / 262144:1
● Range: R:±400µm/±600µm/,C:±5mm/±7.5mm
● Linear precision: R:±7%/±4%,C:0.15%/0.07%
● Residual noise:≤0.025µm/≤0.02µm

● Roughness referance:Guideway, no guide
● Feature description:High-precision integrated inductance sensor can realize not only roughness measurement but also profile measurement. The switch of roughness and profile measurement function can be realized only by changing the measuring needle.

Driver: Dsh Low Noise Driver/Dch Low Noise Ceramic Driver(Can choose according to your needs)

● Rail travel:100-150mm/180~220mm
● Number interval: 0.05~2µm/0.05~5µm
● Contour straightness:0.3µm/100mm
● Roughness residual value:≤0.005µm
● Maximum moving speed:20mm/s
● Minimum measurement speed:0.1mm/s
● Feature description:Low noise actuator can meet the requirement of profile measurement accuracy of standard parts, and the measurement requirement of Ra greater than 0.025 micron can be met with roughness sensor.

Column member: Cnf High Speed Column / Cnfl High Speed Long Column

(Can choose according to your needs)

● Range:320~420mm / 520~620mm
● Maximum moving speed:20mm/s
● Minimum moving speed:0.2mm/s
● Positioning accuracy:0.005mm
● Feature description:High-speed column, frame column, long-term use of non-deformable, precision and fast transmission structure, fast moving speed, wide speed range, high positioning accuracy

Platform components: Mpe Integral Ergonomic Machine Table

● Material:marble
● Specification:500*800,500*1000
● Feature description:Integral design, compact structure, convenient maintenance, saving use space, ergonomics, reduce operator fatigue strength.
