Surface Roughness Tester Contour Measuring System
Universal Surface Roughness And Contour Measuring System Combined
Sensor Roughness measurement profilometer machine
Product Description
Roughness profile measurement analysis basis
The measurable elements of all surfaces include size, shape,
roughness and waviness. Many high-profile components need to
analyze all of the above elements.
◆ Dimensions: Surface functional shapes defined by the linear
relationship between radius, angle, distance, and features.
◆ Shape: deviation from the target shape of the surface (plane,
sphere, cone, etc.), usually caused by machine error
◆ Roughness: caused by factors such as cutting tools or machining
processes
◆ Waviness: Non-ideal machine effect caused by vibration,
insufficient rigidity or other unstable factors in the process
SER1000 Series
Features: standard type, low cost of use
● Inductive profile sensor
● No lead roughness measurement
● Small range high precision profile measurement
● Roughness and profile measurement composite

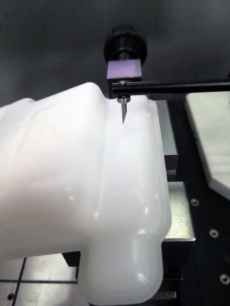

Measuring Case
Brake oil can Brake oil canA
Spring Car fastening bolt
Recommended Size
| |
| X-axis | 100mm |
Z-axis | 320mm |
Z1-axis | C:±5mm R:±400µm |
| Z1 Linear precision¹ | 0.15%f.s. |
Pt | ±0.3µm |
Angle | ±2´ |
Straightness | 0.5µm/100mm |
| Linear precision | ±7% |
Residual noise | ≤0.025µm |
Duplicate value | 1δ≤3nm |
Cutoff wavelength | 0.025,0.08,0.25,0.8,2.5,8mm |
Rating length | λcX2,3,4,5,6,7 |
| X-axis | 0.1~10mm/s |
Z-axis | 0.5-10mm/s |
| Profile | Line elements of various types of workpiece surfaces, point
features, distance between points and points, distance between
lines and lines, position of each element including distance,
parallelism, perpendicularity, angle, groove depth, groove width,
radius, can be performed Straightness analysis, convexity analysis,
profile analysis |
Roughness | Roughness
function:Ra,Rp,Rv,Rz(jis),R3z,RzDIN,Rzj,Rmaz,Rc,Rt,Rq,Rsk,Rku,Rsm,Rsm,Rs,RΔq,Rk,Rpk,Rvk,Mr1,Mr2,Rmr
Waviness parameter:Wa,Wt,Wp,Wv,Wz,Wq,Wsm,Wsk,Wku,Wmr
Original contour parameter:Pa,Pt,Pp,Pv,Pz,Pq,Psm,Psk,Pku,Pmr |
System Components
Sensor:P series digital contour sensor
● Resolution ratio: 65536:1 / 262144:1
● Range: R:±400µm/±600µm/,C:±5mm/±7.5mm
● Linear precision: R:±7%/±4%,C:0.15%/0.07%
● Residual noise:≤0.025µm/≤0.02µm
● Roughness referance:Guideway, no guide
● Feature description:High-precision integrated inductance sensor can realize not only
roughness measurement but also profile measurement. The switch of
roughness and profile measurement function can be realized only by
changing the measuring needle.
Driver: DS standard driver / Dc ceramic driver(Can choose according to your needs)
● Rail travel:100-150mm
● Number interval: 0.2~2µm
● Contour straightness:0.5µm/100mm
● Roughness residual value:≤0.02µm
● Maximum moving speed:10mm/s
● Minimum measurement speed:0.1mm/s
● Feature description:Standard drive, performance can meet the
requirements of part-level contour measurement accuracy, with
roughness sensor can meet the measurement needs of Ra greater than
0.1 microns
Column member: Cns standard type column / Cnsl standard type long
column
(Can choose according to your needs)
● Range:320~420mm / 520~620mm
● Maximum moving speed:10mm/s
● Minimum moving speed:0.5mm/s
● Positioning accuracy:0.01mm
● Feature description:Lightweight design, frame-type column,
long-term use without deformation
Platform components: Mpm integrated standard machine
● Material:marble
● Specification:500*800,500*1000
● Feature description:One-piece design, compact structure, easy
maintenance and saving
