Product Description

Roughness profile measurement analysis basis

The measurable elements of all surfaces include size, shape, roughness and waviness. Many high-profile components need to analyze all of the above elements.

◆ Dimensions: Surface functional shapes defined by the linear relationship between radius, angle, distance, and features.
◆ Shape: deviation from the target shape of the surface (plane, sphere, cone, etc.), usually caused by machine error
◆ Roughness: caused by factors such as cutting tools or machining processes
◆ Waviness: Non-ideal machine effect caused by vibration, insufficient rigidity or other unstable factors in the process

SPR1000 Series

Characteristics:Standard type, low cost of use.

Using a digital contour sensor and an inductive standard roughness sensor dual sensor, a machine can be used to measure contour and roughness.

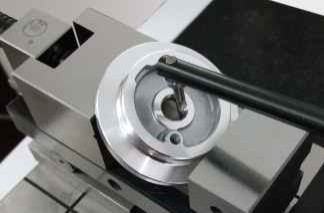

Measuring Case

Articulated arm bearing Optical grade germanium crystal

Seal ring Turbo seal

Recommended Size

System Components

Sensor:P series digital contour sensor

● Resolution ratio: 0.02-0.2µm

● Range: ±7.5-±30µm

● Linear precision: ±(1.5+|0.6H|)µm

● Measuring power: 1.2kg

● Feature description:Digital contour sensor still has excellent linearity in large range

Driver: DS standard driver / Dc ceramic driver(Can choose according to your needs)

● Rail travel:100-150mm

● Number interval: 0.2~2µm

● Contour straightness:0.5µm/100mm

● Roughness residual value:≤0.02µm

● Maximum moving speed:10mm/s

● Minimum measurement speed:0.1mm/s

● Feature description:Standard drive, performance can meet the requirements of part-level contour measurement accuracy, with roughness sensor can meet the measurement needs of Ra greater than 0.1 microns

Column member: Cns standard type column / Cnsl standard type long column

(Can choose according to your needs)

● Range:320~420mm / 520~620mm

● Maximum moving speed:10mm/s

● Minimum moving speed:0.5mm/s

● Positioning accuracy:0.01mm

● Feature description:Lightweight design, frame-type column, long-term use without deformation

Platform components: Mpm integrated standard machine

● Material:marble

● Specification:500*800,500*1000

● Feature description:One-piece design, compact structure, easy maintenance and saving
